LF886W-DOSY-LM-FS 10

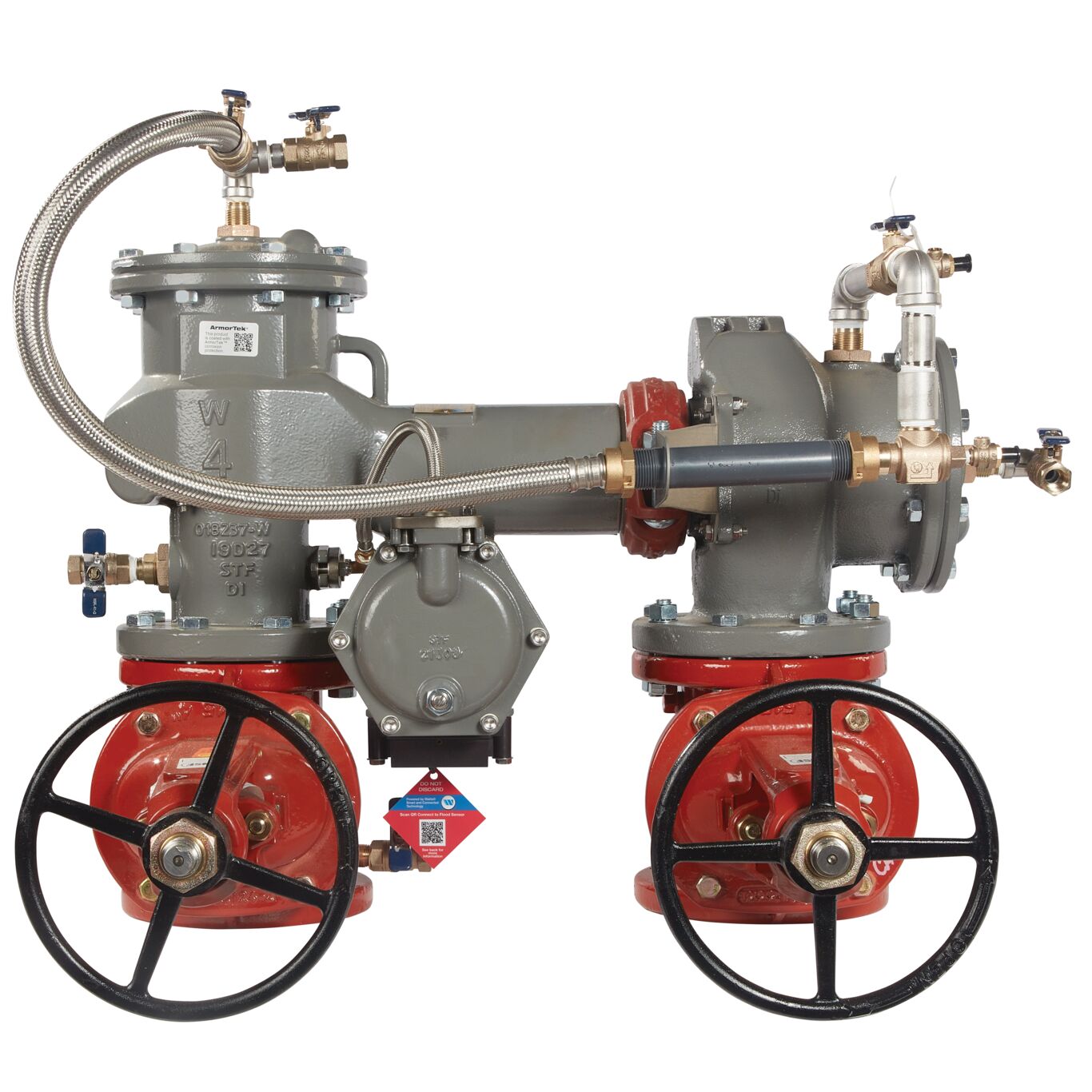

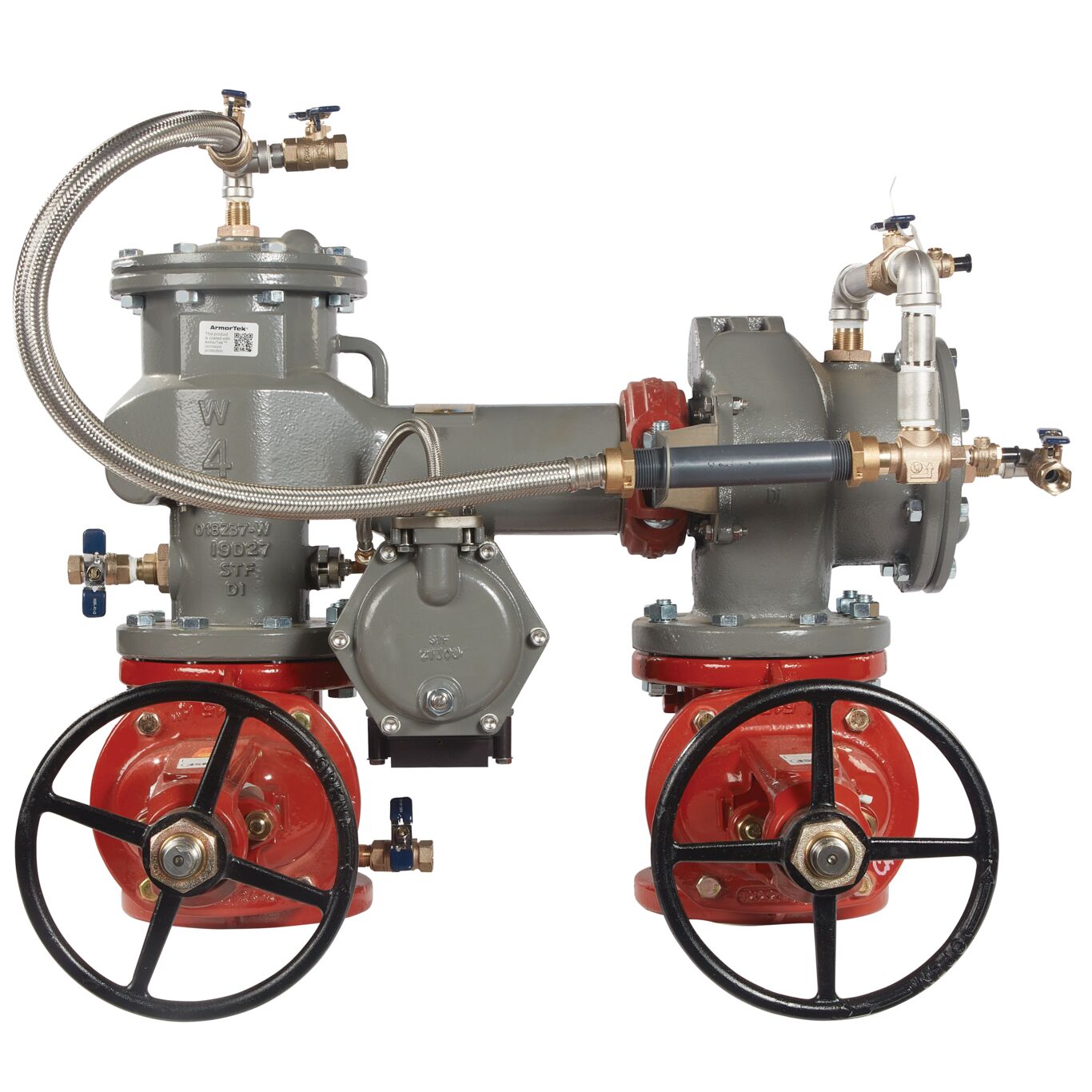

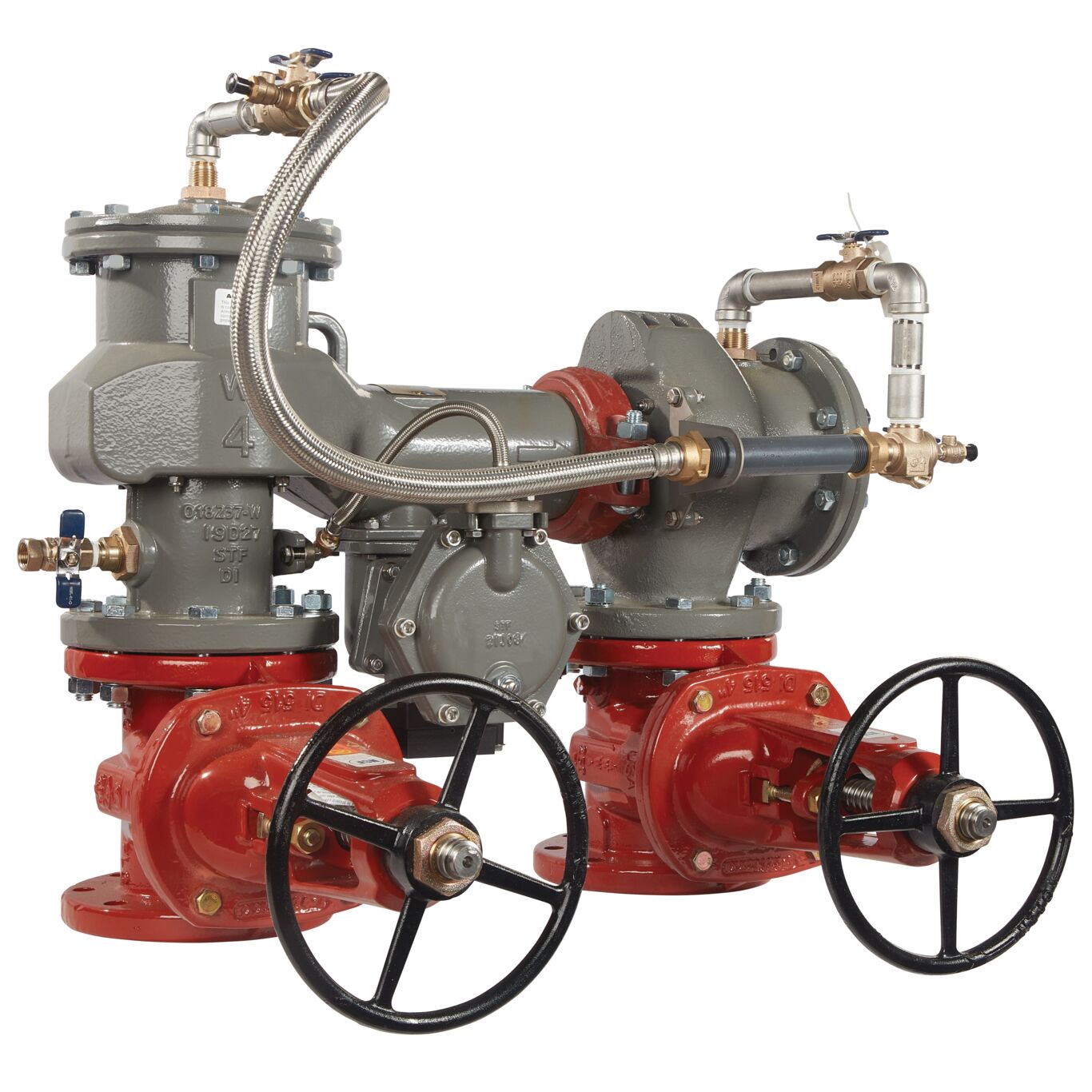

Lead Free MasterSeries N-Pattern Reduced Pressure Zone Detector Assembly Backflow Preventer, Domestic OSY Gates, Less Meter and Flood Sensor

Part of the LF886V Series

Ordering Code: F8007387

UPC: 643925579055

Lead Free: YES

10 IN Ductile Iron RPDA Backflow Preventer Assy, Competitor N-Pat Lay Length, Dom OSY Shutoffs, Clapper Ck Modules, LM, SS RV Seat, N Pat, Backflow Flood Sensor

This 10 inch lead free MasterSeries(R) reduced pressure detector backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This valve features a longer lay-length for drop-in replacement of competitor?s N-pattern valves. This N pattern assembly with domestic OSY shutoff valves consists of a ductile iron body, replaceable stainless steel check seats, bypass, and ball valve test cocks. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
Alert features available with add-on sensor connection kit
Competitor drop-in replacement lay length
Ductile iron body epoxy coated using ArmorTek corrosion resistant technology
Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
Type II bypass

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Detector Assembly
Body Finish	Epoxy Coated Using ArmorTek Technology
Body Material	Ductile Iron
Body Pattern	N-Pattern
Brand	FEBCO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Silicone
EAN	643925579055
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	10 IN
Inlet Connection Size-Metric	250 MM
Inlet Connection Type	Flanged Joint
Inlet Shutoff Valve Type	Outside Stem And Yoke Gate Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	10 IN
Outlet Connection Type	Flanged Joint
Outlet Shutoff Valve Type	Outside Stem And Yoke Gate Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	F8007387
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Stainless Steel
Series	LF886V
Strainer	No
Technologies	Flood Detection
Tradename	MasterSeries(R)
