LF886V-LG-CFM-FS 6

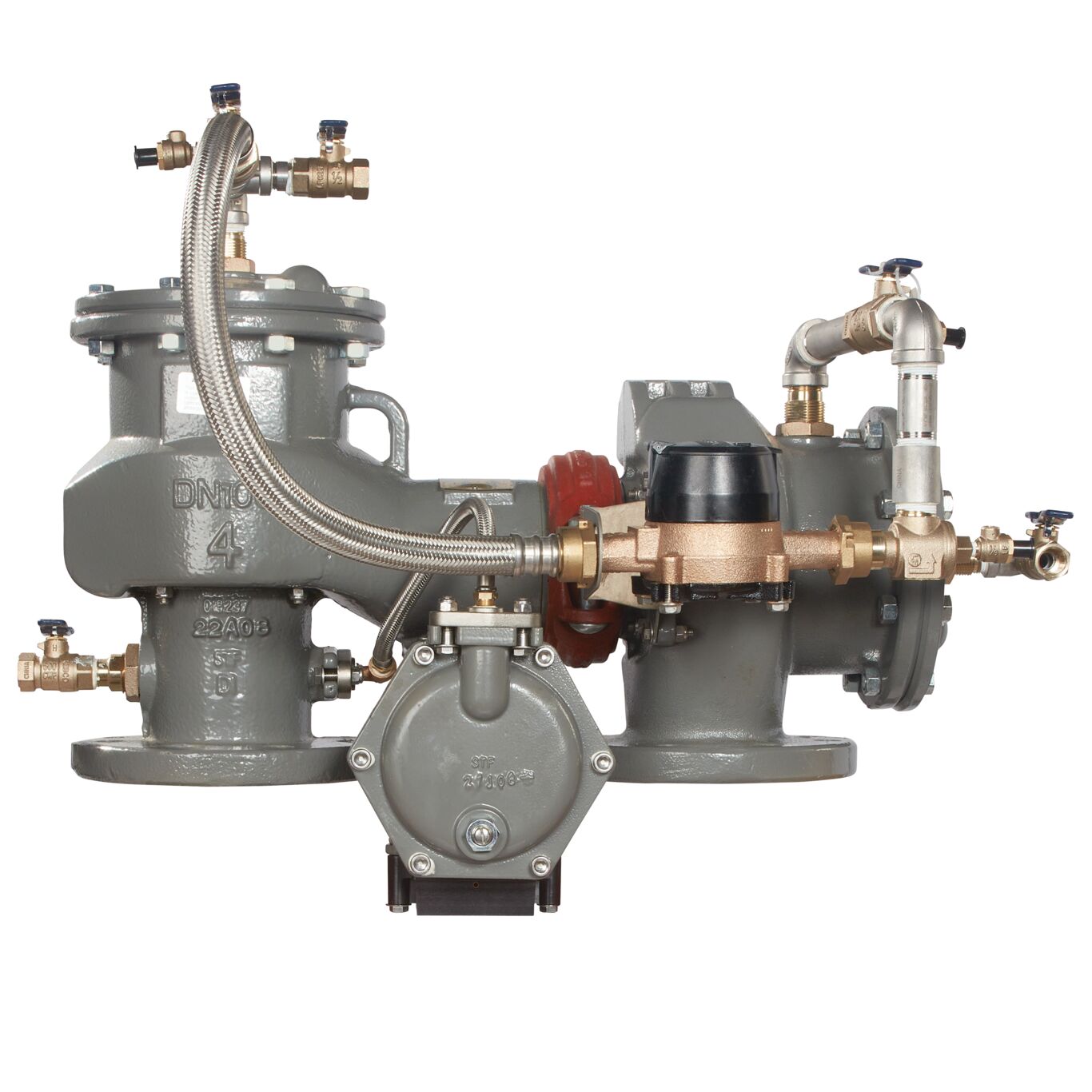

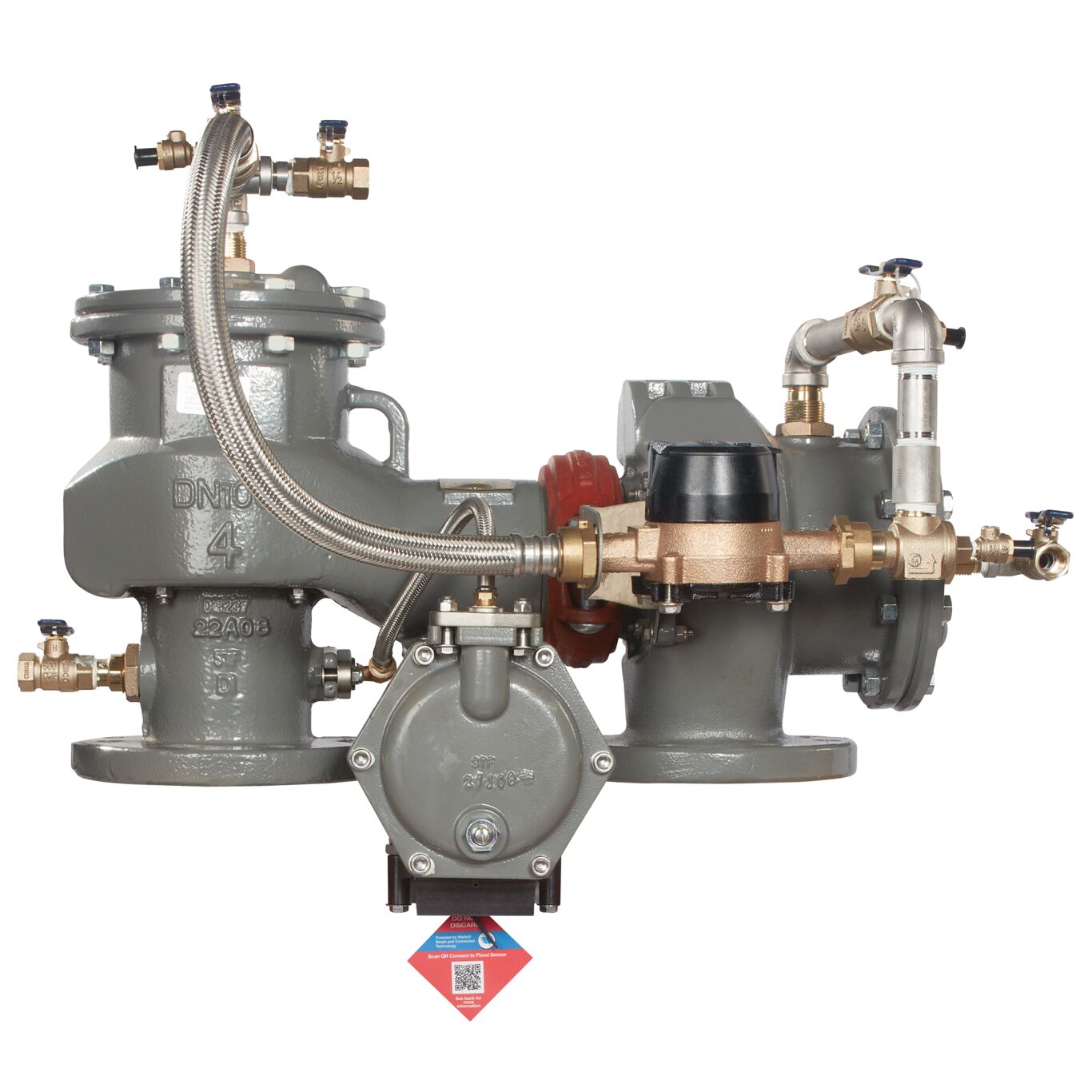

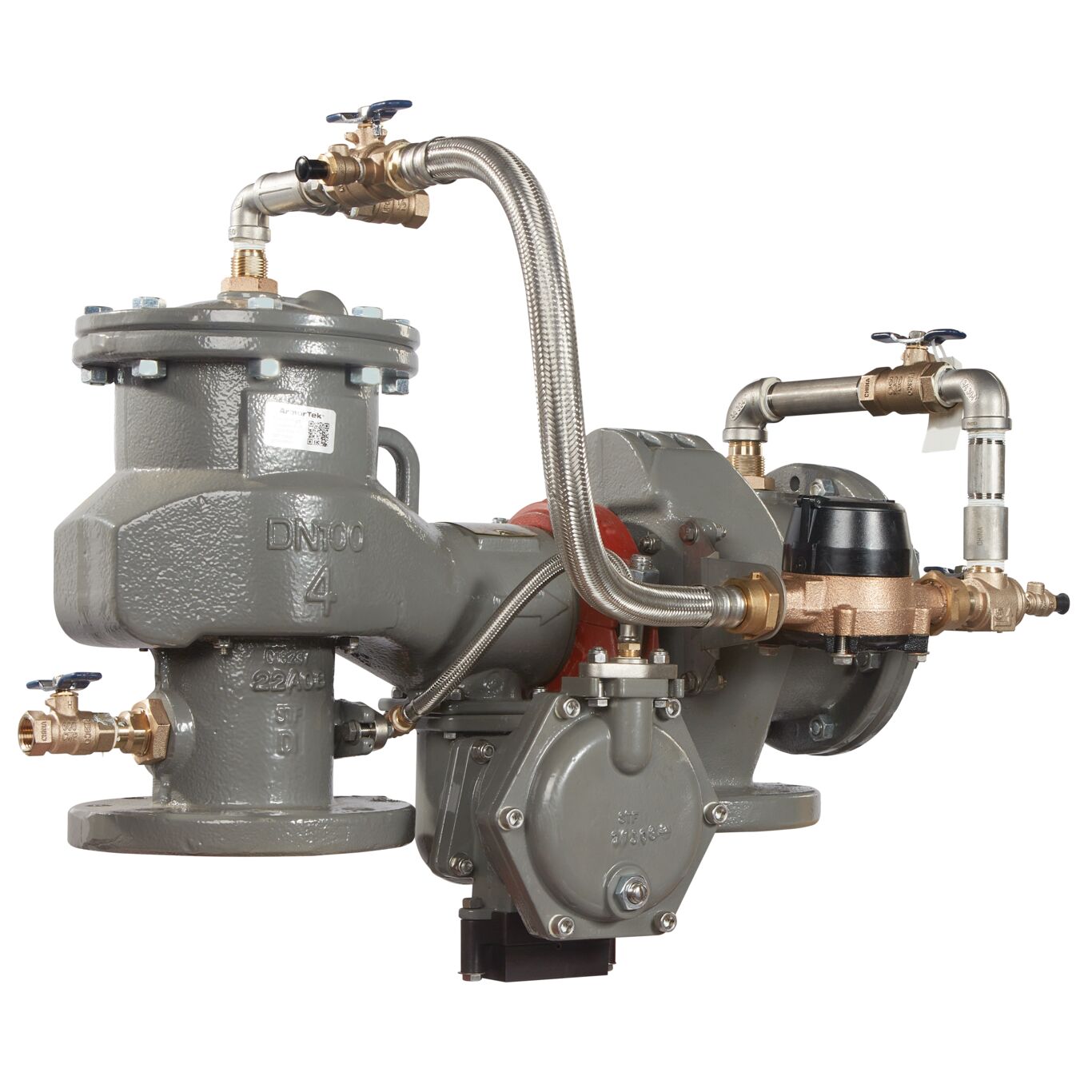

Lead Free MasterSeries N-Pattern Reduced Pressure Zone Detector Assembly Backflow Preventer, Less Shutoff Valve, Meter and Flood Sensor

Part of the LF886V Series

Ordering Code: F683207

UPC: 643925578423

Lead Free: YES

6 IN DI Reduced Pressure Detector Backflow Preventer Assy, Less Shutoff, Clapper Check Modules, CFM, SS RV Seat, N Pattern, ArmorTek Coating, Backflow Flood Sensor

This 6 inch lead free MasterSeries(R), N pattern, reduced pressure detector backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This assembly without shutoff valves consists of a ductile iron body, replaceable stainless steel check seats, cubic feet per minute metered bypass, and ball valve test cocks. The ductile iron body is fused with patented 3-part ArmorTek(R) epoxy coating for advanced corrosion resistance. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
Alert features available with add-on sensor connection kit
Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
Detector bypass assembly with CFM meter
Appropriate for health hazard applications

Specifications
ArmorTek Technology	Yes
Backflow Preventer Type	Reduced Pressure Zone Detector Assembly
Body Finish	Epoxy Coated Using ArmorTek Technology
Body Material	Ductile Iron
Body Pattern	N-Pattern
Brand	FEBCO
Bypass	Yes
Bypass Size	3/4 IN
Cap And Tether	No
Disc Material	Rubber
EAN	643925578423
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	6 IN
Inlet Connection Size-Metric	152.4 MM
Inlet Connection Type	Flanged Joint
Inlet Shutoff Valve Type	No Shutoff Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	CFM
Minimum Temperature - Celsius	1.00
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	6 IN
Outlet Connection Type	Flanged Joint
Outlet Shutoff Valve Type	No Shutoff Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	F683207
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Stainless Steel
Series	LF886V
Strainer	Yes
Technologies	Flood Detection
Tradename	MasterSeries(R)
